Overview

auth_type: "none" is the default. Use it for MCP servers that don’t require any upstream authentication — public MCP services, local STDIO tools, internal services already protected at the network layer, etc. This is also the only valid auth_type for STDIO connections; STDIO subprocesses inherit their environment from the spawning process and there is no per-call header to attach.

​
When to use

  • Public MCP servers with no auth
  • Local STDIO tools (@anthropic/mcp-filesystem, etc.)
  • Internal services already gated at the network or VPN layer
  • Anything you’d hit with curl and no extra headers
If the upstream eventually adds a key, switch to Headers and refill the headers map. Note: connection_type and auth_type are immutable after creation — to change either, delete the MCP client and re-create it.

​
Configuration

  1. Navigate to MCP Gateway in the sidebar
  2. Click New MCP Server
  3. Pick a Connection Type (STDIO, HTTP, or SSE) and fill in the connection target
  4. Leave Auth Type on None (the default)
  5. Optionally configure tools_to_execute / tools_to_auto_execute
  6. Click Create

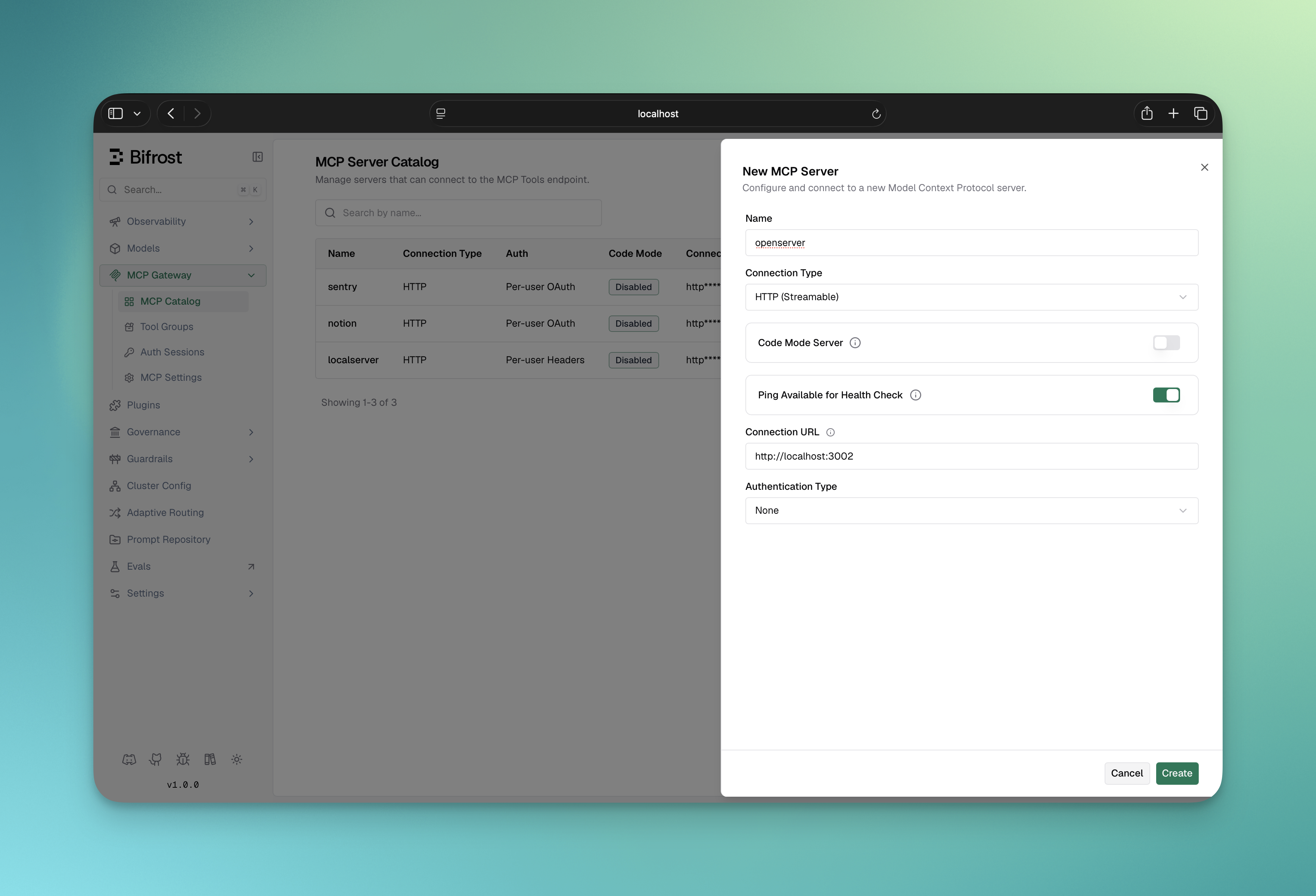

MCP client form with Auth Type set to None

​
STDIO example

STDIO connections must use auth_type: "none":
  1. New MCP Server → Connection Type: STDIO
  2. Fill in Command, Args (comma-separated), and Envs (env-var names to pass through)
  3. Auth Type stays on None
  4. Click Create
Docker users: STDIO connections won’t work if the spawned command (e.g., npx, python) isn’t installed in the container. For STDIO-based MCP servers, build a custom Docker image that includes the dependencies, or host the server separately and connect via HTTP/SSE.

​
